8-Port MINIVIEW Ultra KVM Switch
IOGEAR

IOGEAR
Retail Price:  $450.00
Your price:  $326.00


Description

 Description

8-Port MINIVIEW Ultra KVM Switch

IOGEAR

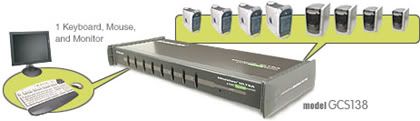

Use one keyboard, monitor and mouse to control 8 computers



****  BRAND NEW, Never Been Used  ****


For All Of Your Computer Needs! --   We Sale All Brands name, Highest Quality, Lowest Prices, (See my feedback we have a lots of satisfied customers)!

Detailed Features

Your business is growing faster than you expected and four computers simply aren’t enough to meet your needs? Not a problem. IOGEAR’s new eight-port MiniView Ultra is just the tool you need to help reduce the need for redundant hardware. Eight monitors, mice and keyboards are simply too expensive, bulky and downright inconvenient for most system administrators. Why bother when you can control all eight, or even up to 512 computers with a single keyboard, monitor and mouse. Just think of the time, space and money you’ll save.

MFC-8660DN

ut our MiniView Ultra is much more than a simple eight-port KVM switch. Built-in AutoScan mode lets you conveniently monitor every attached computer for a specified amount of time, while our On Screen Display technology allows you to assign a unique name to each computer and access it via a slick, menu-driven interface. With it’s 1U, 19 inch rack-mountable casing and status-monitoring LEDs, the MiniView Ultra is the perfect switch for your server room or any other multi-computer environment.

MFC-8660DN

MFC-8660DN

Learn More: What is a KVM? - Flash - 128KB



MFC-8660DN



MFC-8660DN

Features:

  • Use one keyboard, monitor and mouse to control eight computers
  • Control up to 512 computers by connecting multiple GCS138s together
  • On Screen Display provides a convenient method for accessing the computers
  • Connected computers can be added or removed from the setup without disturbing the other computers
  • Keyboard/mouse translation allows PS/2 peripherals to control both PS/2 and serial-based computers
  • Plug-n-Play monitor support and high-resolution video support (up to 1920 x 1440)
  • Easy to install—no software required
  • Built-in AutoScan mode
  • LED's allow for easy status monitoring
Specifications:
  • Computer Cascading Connections: 512
  • Computer Direct Connections: 8

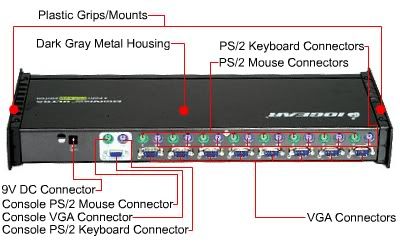

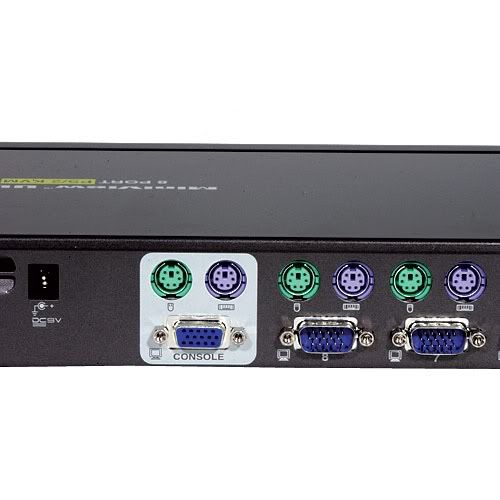

  • Console Connectors:
    - Keyboard: 1 6-pin PS/2 mini-DIN Female
    - Monitor: 1 HDDB15 Female
    - Mouse: 1 6-pin PS/2 mini-DIN Female
  • CPU Connectors:
    - Keyboard: 8 6-pin PS/2 mini-DIN Female
    - Monitor: 8 HDDB15 Male
    - Mouse: 8 6-pin PS/2 mini-DIN Female
  • Emulation:
    - Keyboard:
    * PS/2
    * AT
    - Mouse:
    * PS/2
    * Serial
  • Housing: Metal

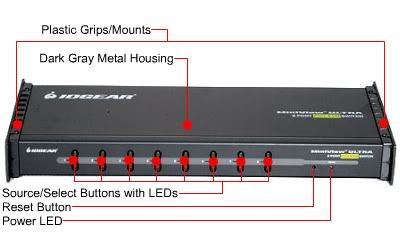

  • LEDs:
    - 8 Online
    - 1 Power On
    - 8 Selected
  • Port Selection:
    - Push Buttons
    - Hot Keys
    - OSD
  • Power:
    - Amps: 400 mA(Max)
    - Voltage: DC 9V
    - Power Consumption: 400 mA(Max)
  • Scan Interval:
    - 3, 5, 10, 15, 20, 30, 40, 60 seconds
  • Video Resolution: 1920 x 1440; DDC2B
  • Weight: 5.9 lbs.
  • Dimensions:
    - Height: 1.75 in.
    - Length: 6 in.
    - Width: 17 in.
Minimum System Requirements:
  • Computers with PS/2 or serial mouse connections, PS/2 or AT keyboard connections, and HDDB15 VGA connection
  • Additional serial to PS/2 adapter required
  • Additional AT to PS/2 adapter required


What's Included:

  • Miniview Ultra KVM switch
  • Power adapter
  • Rack mount kit
  • Installation manual
  • Quick start guide
  • Warranty registration card
